FOR ELECTRIC POWER INDUSTRY

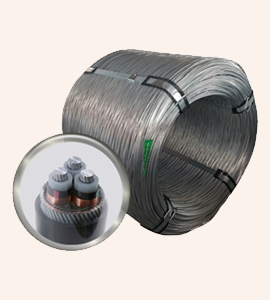

Galvanized Wire
for Cable Armoring
- Hot-dip galvanized
- Dia.: ø 0.24, 0.30, 0.80,
0.90, 1.25, 1.40, 1.60,
2.00, 2.50, 3.15, 3.50mm
- T/S: 340-550N/mm2
- Zinc: up to 800g/m2
- Standard: BS1442, BS443,
EN10244, EN10257 - Packing: spool, rosette coil
- Dia.: ø 0.24, 0.30, 0.80,
0.90, 1.25, 1.40, 1.60,
2.00, 2.50, 3.15, 3.50mm
- T/S: 340-550N/mm2
- Zinc: up to 800g/m2
- Standard: BS1442, BS443,
EN10244, EN10257 - Packing: spool, rosette coil

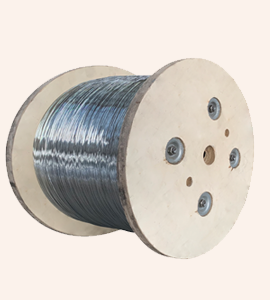

Galvanized Steel Core
Wire/Stranded
Wire for ACSR Conductor
- Hot-dip galvanized
- Grades: SAE 1045 1065
- Dia.: ø 1.40~5.25m
- T/S: 1300-1960N/mm2
- Zinc: Cass A, B & C
- Standard: ASTM A475, ASTM B498
- Grades: SAE 1045 1065
- Dia.: ø 1.40~5.25m
- T/S: 1300-1960N/mm2
- Zinc: Cass A, B & C
- Standard: ASTM A475, ASTM B498

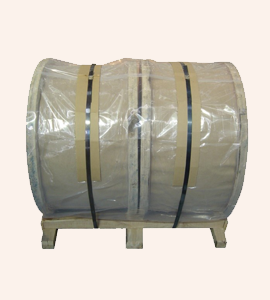

Wire for Optical Fiber Cables
& TV Cable Reinforcement
- Hot-dip galvanized
- Phosphate treated & galvanized
steel wire
- Dia.: ø 0.40 ~ 3.00mm
- T/S: 1500 -2300N/mm2;
600-800N/mm2
- Phosphate treated & galvanized
steel wire
- Dia.: ø 0.40 ~ 3.00mm
- T/S: 1500 -2300N/mm2;
600-800N/mm2

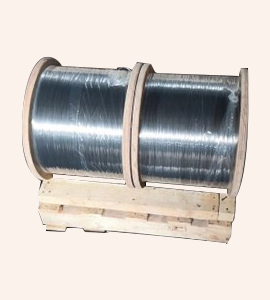

EAA Coated Steel Wire
- Hot-dip galvanized
- Applications: for FTTX cables and
figure 8 cables
- Core Wire: phosphatized or
galvanized
- Dia.: ø 0.40~1.20mm
- Take-up reels: 50kg/plastic spool,
450~500kg/wooden spool
- Applications: for FTTX cables and
figure 8 cables
- Core Wire: phosphatized or
galvanized
- Dia.: ø 0.40~1.20mm
- Take-up reels: 50kg/plastic spool,
450~500kg/wooden spool
